Atrax 2 Flute Centercutting Single End Mill, 1 Mill Dia, 1 Shank Dia, 2-1/4 LOC – 45-206-0

Atrax 2 Flute Centercutting Single End Mill, 1 Mill Dia, 1 Shank Dia, 2-1/4 LOC – 45-206-0

$98.66 $328.86
Review

Mill Dia 1" Shank Dia 1" Length of Cut 2-1/4" Overall Length 5" Atrax 2 Flute Centercutting Single End Mill1" Mill Dia, 1" Shank Dia, 2-1/4" LOC Solid Micrograin Carbide Stub, Regular, Long and Extra Long Lengths30 RH Spiral RHCFeatures: Length of cut may

SKU: 45-206-0 Category:
Description Reviews (0)
Mill Dia 1″ Shank Dia 1″ Length of Cut 2-1/4″ Overall Length 5″

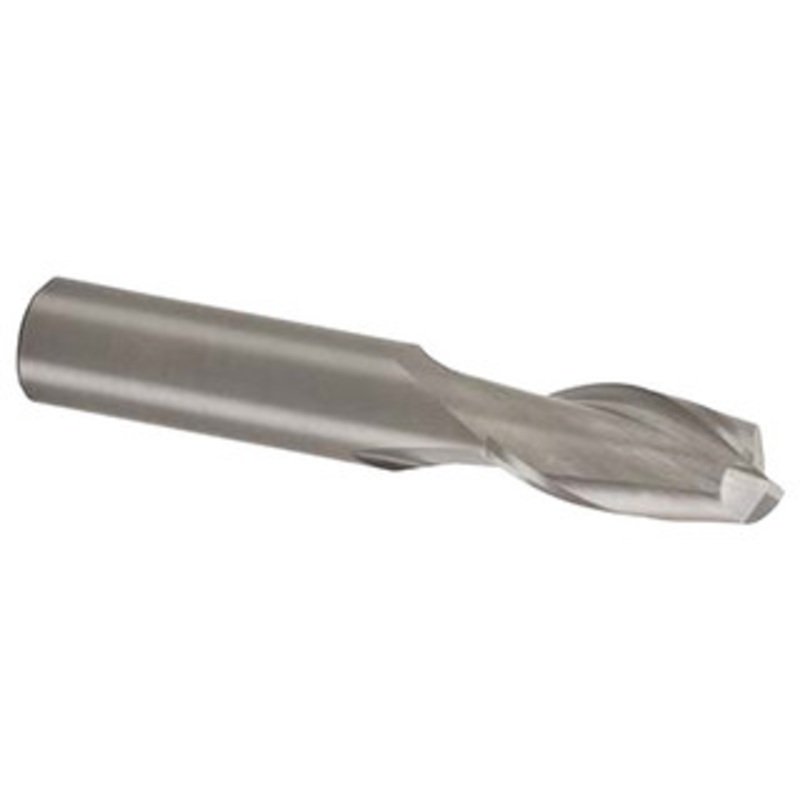

Atrax 2 Flute Centercutting Single End Mill
1″ Mill Dia, 1″ Shank Dia, 2-1/4″ LOC

Solid Micrograin Carbide Stub, Regular, Long and Extra Long Lengths
30 RH Spiral RHC

Features:

  • Length of cut may vary on mill dia. 1/32″ – 7/64″
  • Higher rake and helix angle
  • All end mills are centercutting, allowing for 3 axis capability of plunging, ramping and profile milling.
  • Two flute end mills are excellent for deep slotting applications and also for use on aluminum and nonferrous materials.
Tolerances Size Tolerance Shank Dia. All Sizes +.000/-.0005″ Cutting Dia. 1/32 – 1/4″ +.000/-.002″ 17/64 – 1-1/4″ +.000/-.003″

See all Atrax 2 Flute Centercutting Single End Mills
