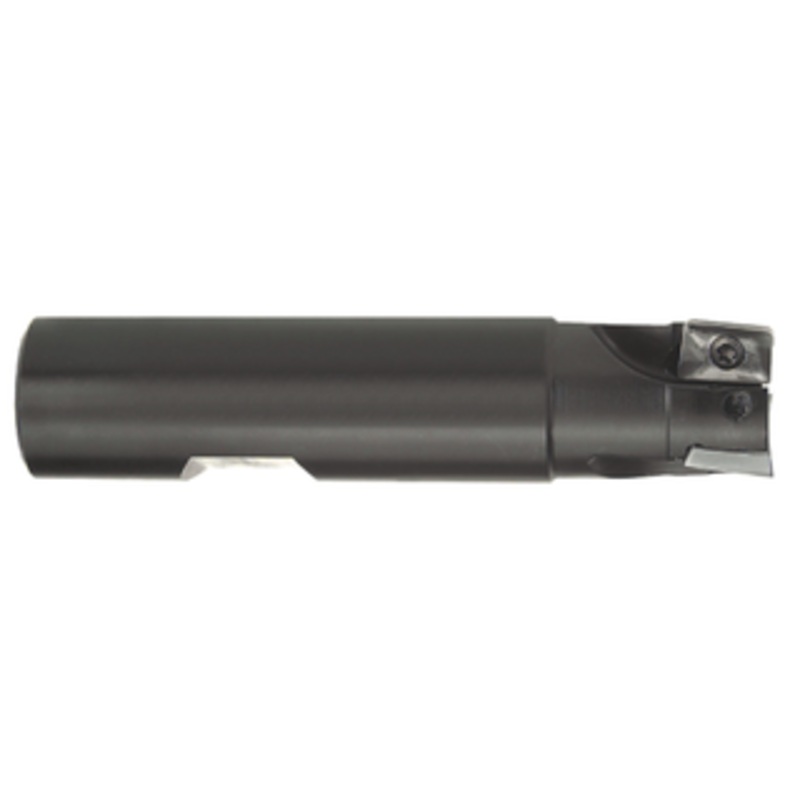

Iscar Helimill Indexable End Mill, 1/2 Shank Dia., 0.375 Cutting Dia., 1 Insert, 3 OAL – HM90 E90A D38-1-W.50

Iscar Helimill Indexable End Mill, 1/2 Shank Dia., 0.375 Cutting Dia., 1 Insert, 3 OAL – HM90 E90A D38-1-W.50

$98.00 $389.95
Review

Head Length 0.640" Travers Catalog Items yes Iscar Helimill Indexable End Mill, 1/2" Shank Dia., 0.375" Cutting Dia., 1 Insert, 3" OAL - HM90 E90A D38-1-W.50 For Face Milling, Slotting, Shouldering, Ramping, Helical Milling (Circular Interpolation), & Plun

SKU: 19-241-795 Category:
Description Reviews (0)
Head Length 0.640″ Travers Catalog Items yes

Iscar Helimill Indexable End Mill, 1/2″ Shank Dia., 0.375″ Cutting Dia., 1 Insert, 3″ OAL – HM90 E90A D38-1-W.50

  • For Face Milling, Slotting, Shouldering, Ramping, Helical Milling (Circular Interpolation), & Plunging.
  • New pocket design which strengthens the cutter body.
  • High axial rake for freer cutting conditions.
  • Closer tolerances in body dimensions – less runout.
  • Excellent for low horse power machines.
  • Shank Type: WELDON
  • Approach Angle: 90
  • Right Hand
  • Maximum Depth of Cut: 0.396″
  • Coolant Use: No
  • Use Torx Screw: SR34-505
  • Use Torx Wrench: T-08
  • Accepts APHT1003 APKT1003 Inserts
  • Inserts not included.

For More Iscar Helimill Indexable End Mills Click Here
